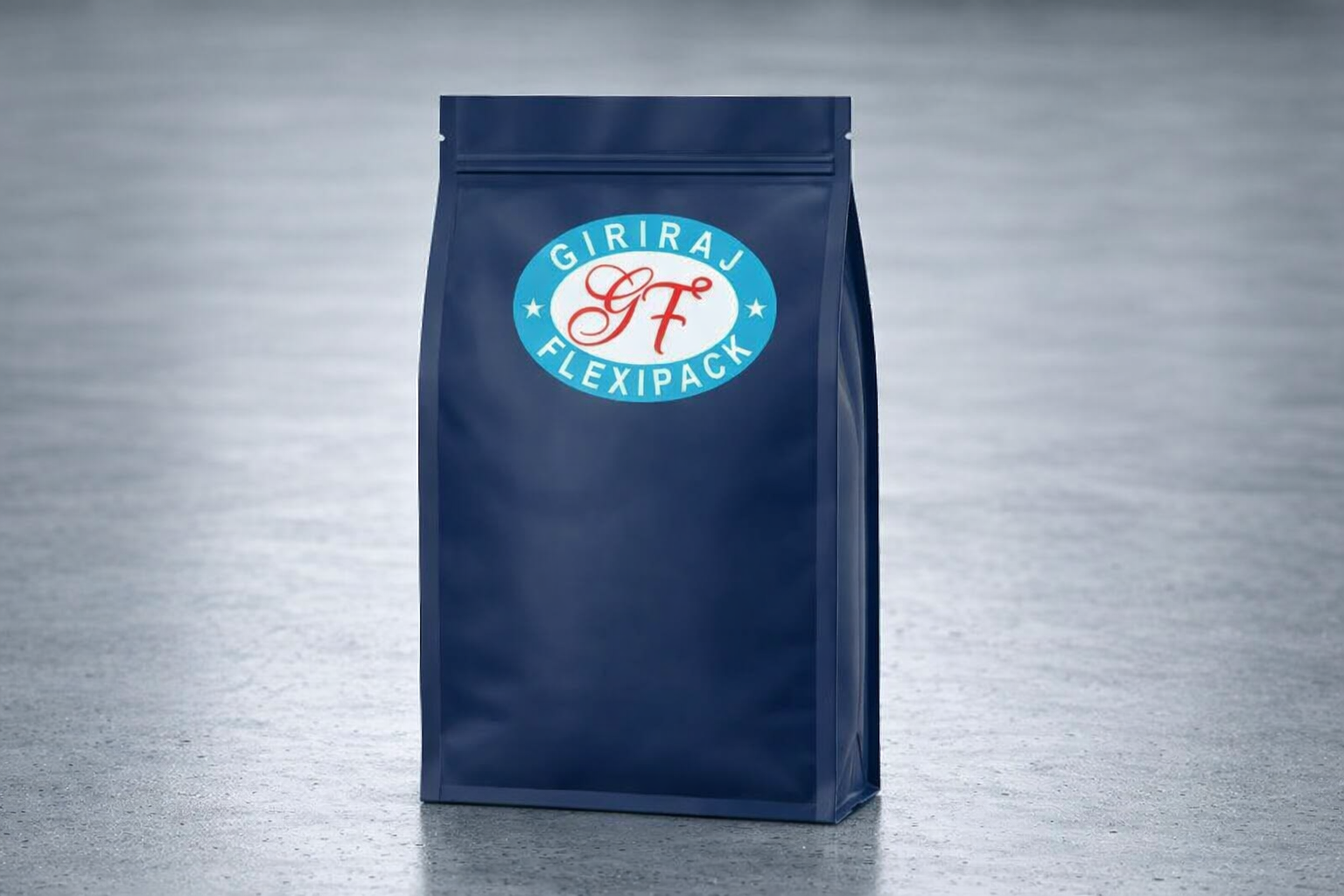

Penta Seal Pouch

Penta Seal Pouch

Penta Seal Pouch (Five Side Seal Pouch) is a premium, high-integrity flexible packaging solution featuring five heat-sealed sides that create a box-like, self-standing structure with exceptional durability. Unlike standard pouches, the penta seal design incorporates reinforced sealing on all four vertical edges plus a wide flat bottom, offering unmatched protection for sensitive products requiring extended shelf life, superior stackability, and a high-end retail presence.

Printing Technique: Rotogravure
Base Material: PET
Application: Food Packaging
Aditional Cost: Dye Cylinder Cost, Printing Cost, Pouch Making Cost
Pouch Finish: Glossy
Minimum Order Quantity: 500 Kg.
Call for Inquiry +91 8595368604
Details
Type
Speciality

Penta Seal Pouch — also known as Five Side Seal Pouch, 5-side seal bag, or box-bottom pouch — represents the pinnacle of flexible packaging engineering. As the name suggests, this pouch features five heat-sealed sides: four vertical seals (front, back, left, and right) plus a fully sealed bottom panel. This construction creates a rigid, rectangular, box-like structure that stands perfectly upright without any external support.

How It Is Constructed:

The penta seal pouch begins with a sophisticated flat-bottom design similar to a quad seal pouch but with a critical distinction: while quad seal pouches have four seals (two side seals plus front and back bottom extensions), the penta seal pouch incorporates a fifth sealing point that creates a completely enclosed, leak-proof bottom panel. The result is a pouch with absolutely no exposed edges or potential leakage points along the bottom perimeter.

The five-seal configuration includes:

  1. Left side seal - Reinforced vertical seal

  2. Right side seal - Reinforced vertical seal

  3. Front bottom seal - Horizontal seal across front panel

  4. Back bottom seal - Horizontal seal across back panel

  5. Bottom panel perimeter seal - Fifth seal that fully encloses the base

Standard Penta Seal Pouch: Five fully sealed sides (four vertical + bottom perimeter). Creates box-like rigid structure. Best for premium dry goods: coffee, tea, spices, pet food (500g–5kg). Superior stackability and shelf presence.

Penta Seal Pouch with Degassing Valve: Includes one-way degassing valve on front panel (typically upper third). Essential for freshly roasted coffee, fermented products, or any CO2-emitting contents. Prevents pouch bulging while maintaining oxygen barrier. Valve can be clear or colored with brand logo.

Penta Seal Pouch with Zipper: Press-to-close zipper integrated below top seal. Allows partial use and resealing. Popular for premium dried fruits, nuts, pet treats, and coffee (for consumers who open and reclose daily). Available with euro zipper or mini zipper.

Penta Seal Liquid Pouch (Spout Pouch): Features rigid spout fitment with screw cap on top panel. Completely leak-proof due to fifth bottom seal. Ideal for cooking oils, liquid detergents, syrups, concentrates (1–5 liters). Replaces rigid plastic jugs with 70% less plastic.

Penta Seal Window Pouch: Features transparent window (clear patch) on front panel. Used for premium products where visual appeal drives purchase decisions: colored pasta, exotic rice, gourmet snacks, hardware components. Window can be round, square, or custom shape.

Giriraj Flexipack is always known for its specialties in the industry. In terms of penta seal (five side seal) pouches also, we are way ahead of others. With 5 automatic pouch making machines, we deliver unmatched precision, speed, and heavy-duty customization for penta seal pouches from our Delhi, India facility.

Our Specialties in Penta Seal (Five Side Seal) Pouches:

  • True Five-Seal Configuration: Unlike some manufacturers who market quad seal pouches as “five side,” our penta seal pouches feature a genuine fifth perimeter seal on the bottom panel. This creates a completely enclosed base with no exposed intersections — the gold standard for leak-proof flexible packaging.

  • Reinforced Seal Strength (50+ N/15mm): Our penta seal pouches undergo reinforced sealing on all five edges using dual-stage sealing bars. Minimum seal strength: 35–50 N/15mm — significantly higher than standard pouches (typically 25–35 N/15mm). This makes our penta seal pouches ideal for heavy products (up to 25 kg), vacuum packaging, and liquid containment.

  • Box-Like Rigidity with Flexible Economics: The penta seal design creates a package that rivals rigid boxes and cartons in shelf stability but uses 60–80% less material. Your product gets premium, box-like presentation at flexible packaging prices.

  • Vacuum Packaging Specialists: Our penta seal pouches are engineered specifically for vacuum applications. The five-seal configuration prevents the “puckering” and seal stress常见 in standard pouches under negative pressure. Perfect for vacuum coffee bricks, cheese blocks, and processed meats.

  • In-Line Feature Integration (8+ Options): All added during pouch formation — no secondary operations:

    • Degassing valves (one-way, clear or colored, custom branding available)

    • Press-to-close zippers (euro zipper, mini zipper, slider zipper)

    • Spout fitments (8mm–35mm cap diameter, for liquids)

    • Transparent windows (round, square, rectangular, custom shapes)

    • Reinforced handle cutouts (for 10–25 kg heavy products)

    • Tear notches / laser scoring (V-notch, U-notch)

    • Euro slots / hang holes (for pegboard retail display)

    • Child-resistant mechanisms (CRC zipper, two-step open)

  • High-Speed Penta Seal Production (120+ Pouches/Minute): Despite the complex five-seal configuration, our automatic machines produce up to 120 penta seal pouches per minute on VFFS lines — among the fastest in North India for this premium format.

  • Rotogravure Printing Excellence (Up to 10 Colors): Penta seal pouches offer 360° branding opportunities on flat front, back, and side panels. We maximize this with cylinder-based rotogravure printing up to 10 colors with registration accuracy of ±0.2 mm. Matte finish, gloss finish, metallic effects, and spot varnish available.

  • Complete Material Versatility:

    • Clear laminates (PET/LLDPE) for product visibility

    • Metalized (PETmet/LLDPE) for premium look + medium barrier

    • Foil-based (PET/Al/LLDPE) for ultra-high barrier (pharma, vacuum coffee)

    • EVOH-based transparent high barrier (for oxygen-sensitive products requiring visibility)

    • Kraft paper laminates (eco-friendly premium aesthetic)

    • Anti-static films (for electronic components, explosive powders)
